Richpeace Cap Tubular T-Shirts Embroidery Machine 2 Heads

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Embroidery Area:
360*450
Overall Dimensions:
1400*1180*1650
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Model Number:
RPED-TC-1202-360*450
Type:
Cap Embroidery Machine
Operation:
Computerized
Head Number:
2 Heads
Needle Number:
12
Head Interval:
360
Certification:
CE & ISO2000 & BV
Function:
cap,tubular&flat embroidery
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
VACCUM FOIL PLUS WOODEN CASE PACKING
Port
Tianjin Xingang port
Lead Time :
20-30days

Specifications

Multi-function embroidery: Tubular, caps, socks
Highest Accurate & Speed
Smart model convenient to move


Product Description



Richpeace Cap Tubular T-shirt Embroidery Machine Dual with 12 colors



                                                                                                                       Cap, Tubular, Flat Embroidery, 3 functions in 1





MODEL:   RPED-TC-1202-360X450

Main Functions
Multi-function Embroidiery :Machine is widely used in T-shirt, sportwear, and caps as well as general flat embroidery working;
Power Failure Protection :When unexpected power failure occurred, it can search for the last stopping point and make a continuous operation;
Auto thread breaking detection :When the upper thread or under thread in the state of broken or running out of thread, the machine can detect it and stops automatically;
Auto Speed Control :Increase or decrease to the reasonable embroidery speed automatically according to stitch length;
Frame Movement :Manual frame back/forward is available with the units of stitches, color change or stitch count number.



Standard Specification
Specification :Single Head, Bridge Style
Control Panel :5" LCD screen and keypad operation panel, provided with USB and LAN port.
Main Shaft Driving :Transducer Motor
Frame Driving :Stepping Motor
Resize/Rotation : Design can be resized from 50% to 200% with 1% increment, design rotation is allowed with 1 degree increment;
Hooking System : Separated motor hooking system gives more reliable & low noise thread hooking;
Pressure Foot : Adjustable pressure foot gives variety per different thickness of material;
Flat Embroidery Area :520 x 450 mm
Cap Embroidery Area :360 x 75 mm
Tubular Embroidery Area :350 x 350 mm
Max.Speed (Flat)                            Embrodiery) :1000 rpm
Max. Speed (Cap Embrodiery) :850 rpm
Max. Speed (Tubular Embroidery) :850 rpm




Embroidery on caps

Embroidery on T-shirt:

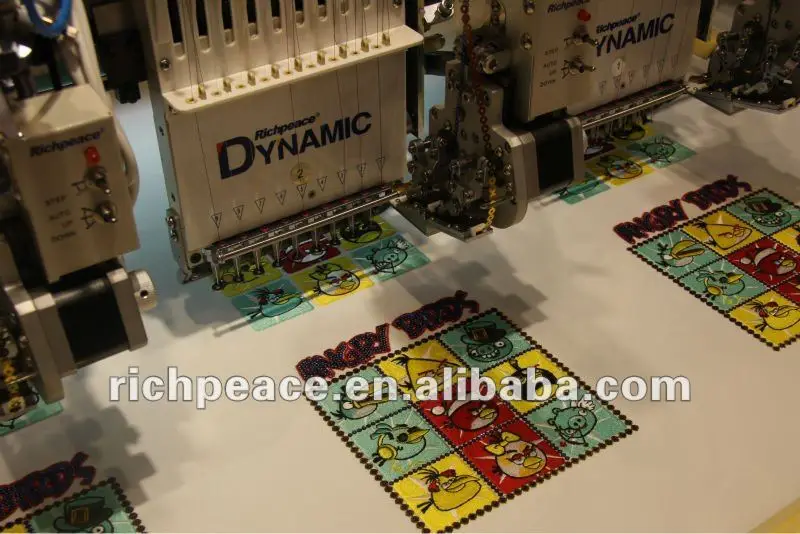

Embroidery as a flat machine:





 Working Video of Cap&Tubular machine pls kindly check:  http://www.richpeace.com/products-and-solutions/embroidery/rped-tc-series/flat-cap-tubular-single-head-embroidery-machine.html




Packaging & Shipping



Packing Detailes:






Company Information



Welcome to Richpeace Factory

Richpeace Group Co., Limited. takes the responsibility of developing high-tech industrial standard, concentrates on reforming and advancing the traditional industry by new technology, advanced and applicable techniques under the corporate idea of  "lead by science and technology, then industry advances; make every effort, then gain the prosperous and the first class; honestly operate, then true love returns". Richpeace Group became such a high-tech enterprise with 12 companies directly under or stock-controlling. The directly under or stock-controlling companies has been nation-famous in textile and garment industry.

Through the years operation, Richpeace invested has formed the operating structure of technique's pluralism, series of products, sales networking, and international marketing, constructed 6 informationized textile and garment industrial terrace of computerized embroidery, computerized garment, computerized knitting, computerized quilting, computerized shuttle, and industry automatic control systems, developed self-owned intellectual property right of high-tech products of hundreds of products kinds, 24 series, and 6 classes. Richpeace has 24 patents in textile, garments, and embroidery industry, hundreds of software copyrights, 6 corporation's standards, and over 20 honors. And Richpeace has over 20 selling channels, 13 professional network stations. Main products exported to over 50 countries and regions such as North America, Europe, Southeast Asia, and Africa, with more than 20 international agents.

While "Peace" is the eternal subject of human beings, and "Rich" is the common goal of human beings, Richpeace Group will make joint efforts with the customers, shareholders and employees to develop a bright future side by side.




Our Services
  1. Installation Services: Installation Services are available. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
  2. Training Services: We can provide the free training to customer not more than 10 days either in our factory or customer’s factory, we offer Customers Training, teaching, how to use the machine most efficiently and safely as well as how to maintain optimal operational productivity. While the accommodations and travelling expenses should be borne by customer .
  3. Warranty Service: 12 months since the date of machine shipped on board, excluding the consumable parts and humanly damaged parts. Broken electrical boards should be returned back to seller.
