Richpeace Computerized Multi Needle Shuttle Quilting Machine RPQD-RL-943

FOB Reference Price:Get Latest Price
$300.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
3.5kw
Dimension(L*W*H):
4150/1050/1750
Weight:
3t
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Model Number:
RPQD-RL-943/10
Max Sewing Speed:
600RPM
Max Sewing Thickness:
500mm
Number of Head:
Multi-needle
Moving Style:
Frame Moved
Voltage:
220V
Certification:
CE
Certificate:
CE APPROVED
No. of Needle Bar:
3
Shuttle:
#10
Stitch:
lock stitch
Max.Quilting Thickness:
45mm
Max. Quilting Width:
3250mm
Max. Quilting Speed:
550rpm
Warranty:
13 months
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing
Port
Tianjin port
Lead Time :
20-60days

Product Description

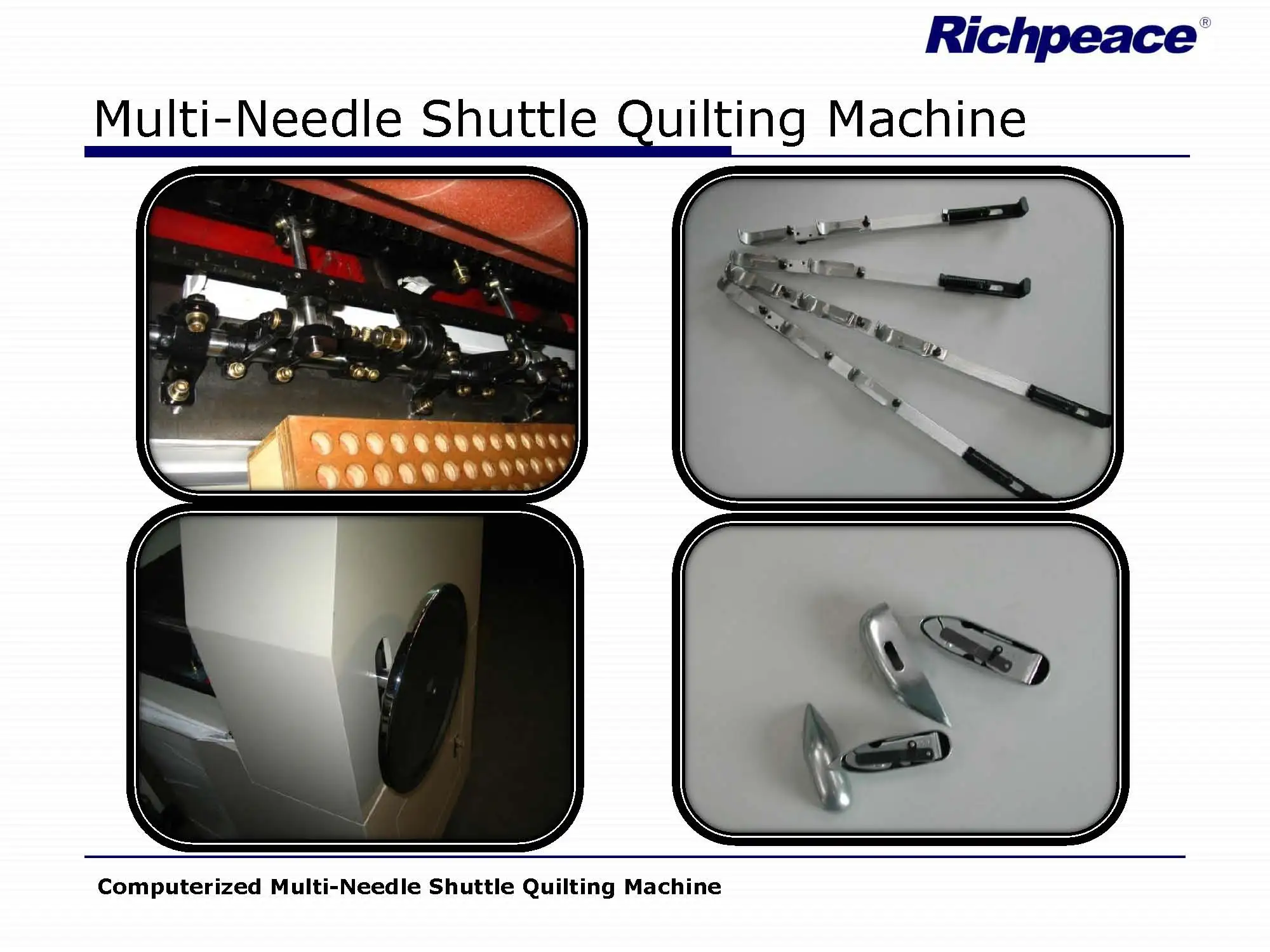

  Richpeace Computerized Multi Needle Shuttle Quilting Machine Popular Model



CE APPROVED

Application

  • This machine is widely used for quilting many kinds of high-quality bedding products, such as quilts, thin mattress, bed cover, quilt cover, pillow cover, sofa cushion and winter clothes, hand bags, household ornaments, etc.

Model:RPQD-RL-943/10









Main Functions & Features



  • New generation of computer control system and high rigidity of   machine body, enable quilting precisely and decreasing noise; .
  • Upper thread breakage detection.
  • Auto-stop and auto needle-lifting when thread breakage.
  • Unlimited multi-span quilting. (180°,360°patterns are available)
  • Patterns made by CAD drawing system,convenient and high efficient,up to 1000 patterns can be stored in the machine.
  • Simple embroidery patterns are available
  • Pattern-combining.
  • Machine running state be detected at any given time.
  • High efficiency.
  • CNC speed adjustment system makes sure the high quality quilting, Max. quilting speed at 550rpm, normal working speed at 400-450rpm
  • Advanced uuper thread breakage detection function, auto-stop and auto needle-lifting when thread breakage;

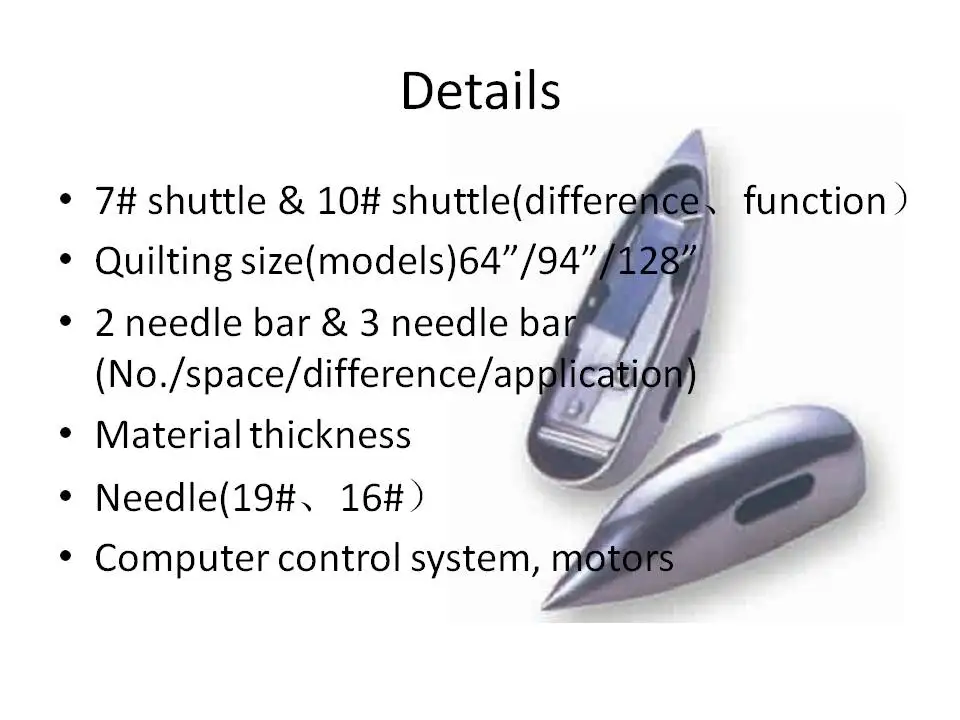

  • #7 and #10 shuttle is available
  • Pattern unit combine function to make more new patterns easily
  • Build-in quilting software, creat patterns easily and conveniently




Model:



ModelRPQD-RL-642RPQD-RL-942RPQD-RL-943 RPQD-RL-1283
No.of Needle Bar2233
Shuttle No7/107/107/107/10
Needle Bar Space76.276.276.2,76.2,152.476.2,76.2,152.4
Max.Quilting Thickness20202020
Quilting area1700245024503300
Step length2-52-52-52-5
Travel Distance in X-axis200305305305
Quilting Speed550rpm550rpm550rpm450-550rpm
Production Speed20-110m/h 20-100m/h20-100m/h20-90m/h
Dimension3200/1050/17004150/1050/17504150/1050/17505100/1150/1800
Power3kw3.5kw3.5kw4.5kw
Voltage380v /50hz 220v/60hz380v /50hz 220v/60hz380v /50hz 220v/60hz380v /50hz 220v/60hz





Sample
