Richpeace Computerized Single Head Quilting Machine Quilting size = installation size

FOB Reference Price:Get Latest Price
$25,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
2.0KW
Dimension(L*W*H):
according to model
Weight:
2T
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
RICHPEACE
Model Number:
RPQ-ST-2830
Max Sewing Speed:
2500rpm
Max Sewing Thickness:
5CM
Number of Head:
Single Head
Moving Style:
Head Moved
Voltage:
220V
Certification:
CE
Head:
1
Speed:
2500rpm
Head type:
rotary up automatically
Computer Control:
Industry standard, 10.4 inches touching screen
Thread Trimming:
yes
Main motor:
Panosonic servo motor 2pc
Needle&Hook Motor:
Panosonic servo motor 2pc
Bridge Moving:
on linear guide rail
Head Moving:
on linear guide rail
Machine Structure:
1:1 design frame is fixed
Warranty:
13months
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
600 Set/Sets per Year
Packaging & Delivery
Packaging Details
Vaccum-packed with aluminum foil in wooden box, group packing vailable for 4sets order or above.
Port
XINGANG, TIANJIN
Lead Time :
Shipped in 30 days after payment

Product Description



Richpeace Computerized Single Head Quilting Machine Unique 1:1 Design





This machine is widely used for producing all kinds of high class bedding products, such as: bed mat, bed quilts, sleeping bags, mattress cover etc.  it's the most highest quality machine, good for both thin and thick material quilting.

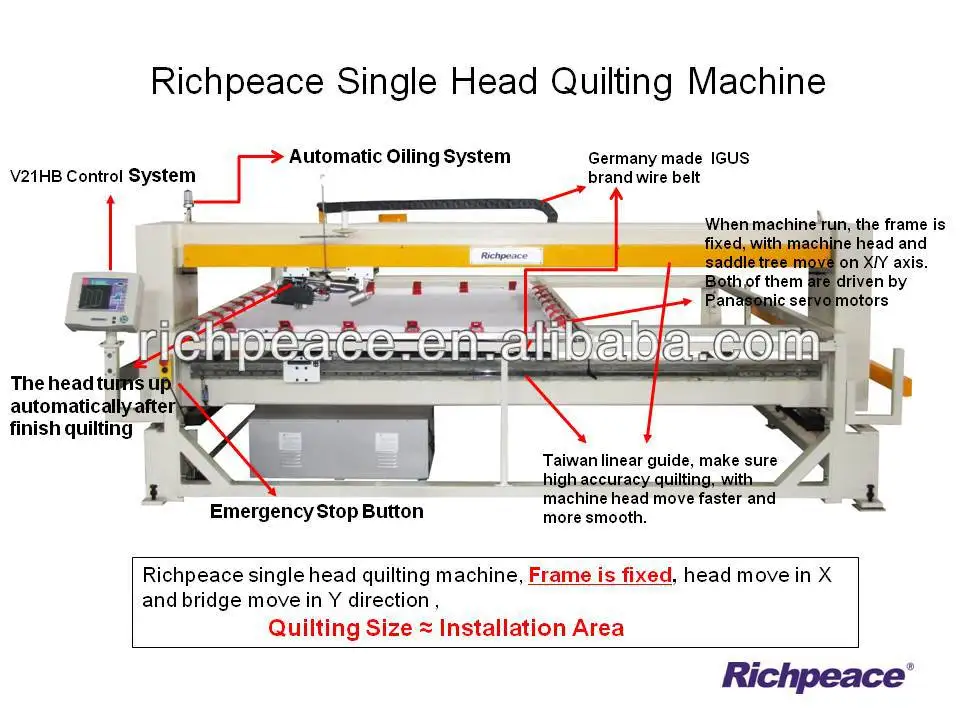

 MAIN FEATURE & FUNCTION:



  • Real 1:1 design,  Sewing head move in X and Y direction with frame fixed. Mini installation area.
  • The quilting size is almost as same as machine dimension, minimum factory floor area is requested. It is the Richpeace's unique design in industry
  • Maximum quilting size: 3.3 x 3.3 meters, largest working area awailable in all suppliers
  • New 10.4inches Touching screen computer operation panel, saving more space!



  • Highest working speed:  2500rpm.
  • Four panasonic servo motors offer powerful drive and long working time of machine.
  • Taiwan linear guide rails for bridge moving, head moving, and rotary hook case moving;  make the machine move quietly and smoothly, the space between needle and rotary hook is more stable
  • Highest quilting stitch quality, best pattern precision.   Pattern graphics joint with each other with extremely high accuracy.

Auto thread-cutting function at jump quilting, save labor and time.

  • The sewing head turns up automatically for easy changing of quilt frame.
  • New LED lighting system energy-saving and trace whole quilting process
  • Automatically stop to front side once thread break, and come back to stop point after re-threading.
  • Infrared facility protect safe operation





  • Japanese Koban Jumbo rotary hook carries more thread, saving time greatly.
  • Wire Belt Chain brand: Igus made in Germany
  • Automatic oiling system
  • Adjustble quilting frame.  2 sets of frames (4pcs total) free of charge
  • Professional industry computer control system, powerful computer function
  • Powerful Quilting punching system to make patterns accurately, offer free of charge

MODEL & SPECIFICATION



Model (Name Rule)RPQ-ST-2628RPQ-ST-2830
Max. Quilting Size2600x2800mm2800x3000mm
StitchLock StitchLock Stitch
Stitch Length2~6mm2~6mm
Quilting Density1500g/m21500g/m2
Max. Speed2500 rpm2500 rpm
Installation Area3.6m x 3.9m4.0m x 4.1m





OPTIONAL PARTS:

  • Easy frame changer for preparing quilts, and change frames easily

Easy frame changer working in customer's factory:



Richpeace's single head quilting machine in customer's factory:  Brazil



Richpeace's single head quilting machine working in customer's factory with automatical hanging system:



Richpeace Single Head machine work in customer's factory, mattress cover quiling:



high quality stitch quilting on Leather products:



  • V21 type computer control system

Working Video of Single Head Quilting machine pls kindly check: http://www.richpeace.com/products-and-solutions/quilting/rpq-st-series.html


Company Information



Welcome Visit Richpeace Company:

Richpeace Group Co., Limited. takes the responsibility of developing high-tech industrial standard, concentrates on reforming and advancing the traditional industry by new technology, advanced and applicable techniques under the corporate idea of  "lead by science and technology, then industry advances; make every effort, then gain the prosperous and the first class; honestly operate, then true love returns". Richpeace Group became such a high-tech enterprise with 12 companies directly under or stock-controlling. The directly under or stock-controlling companies has been nation-famous in textile and garment industry.

Through the years operation, Richpeace invested has formed the operating structure of technique's pluralism, series of products, sales networking, and international marketing, constructed 6 informationized textile and garment industrial terrace of computerized embroidery, computerized garment, computerized knitting, computerized quilting, computerized shuttle, and industry automatic control systems, developed self-owned intellectual property right of high-tech products of hundreds of products kinds, 24 series, and 6 classes. Richpeace has 24 patents in textile, garments, and embroidery industry, hundreds of software copyrights, 6 corporation's standards, and over 20 honors. And Richpeace has over 20 selling channels, 13 professional network stations. Main products exported to over 50 countries and regions such as North America, Europe, Southeast Asia, and Africa, with more than 20 international agents.

While "Peace" is the eternal subject of human beings, and "Rich" is the common goal of human beings, Richpeace Group will make joint efforts with the customers, shareholders and employees to develop a bright future side by side.




Our Services
  1. Installation Services: Installation Services are available. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
  2. Training Services: We can provide the free training to customer not more than 10 days either in our factory or customer’s factory, we offer Customers Training, teaching, how to use the machine most efficiently and safely as well as how to maintain optimal operational productivity. While the accommodations and travelling expenses should be borne by customer .
  3. Warranty Service: 12 months since the date of machine shipped on board, excluding the consumable parts and humanly damaged parts. Broken electrical boards should be returned back to seller.
