Fully Smoothly Automatic Fabric Cutting Spreader

FOB Reference Price:Get Latest Price
$1,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Model Number:
RFT-1012
Max Spreading Weight:
100kg
MAX WORKING SPEED:
80M/MIN
MAX WIDTH OF THE FABRIC:
1200MM
Auto Cutting Device:
YES
Automatic Edge Matching Function:
YES
With Layers Count Control Function:
YES
With Auto Up& Down Control Function:
YES
Fabric Inspection Luminosity:
YES
OPTIONAL DEVICE:
AIR FLOATING TABLE; TRANSFER TABLE; POWER TACK;
OPTINAL DEVICE:
OPERATOR PLATFORM ; ZIGZAG DEVICE; FABRIC LOADING DEVICE
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Package
Port
Tianjin Xin Port, China
Lead Time :
20-3 Days







Product Description

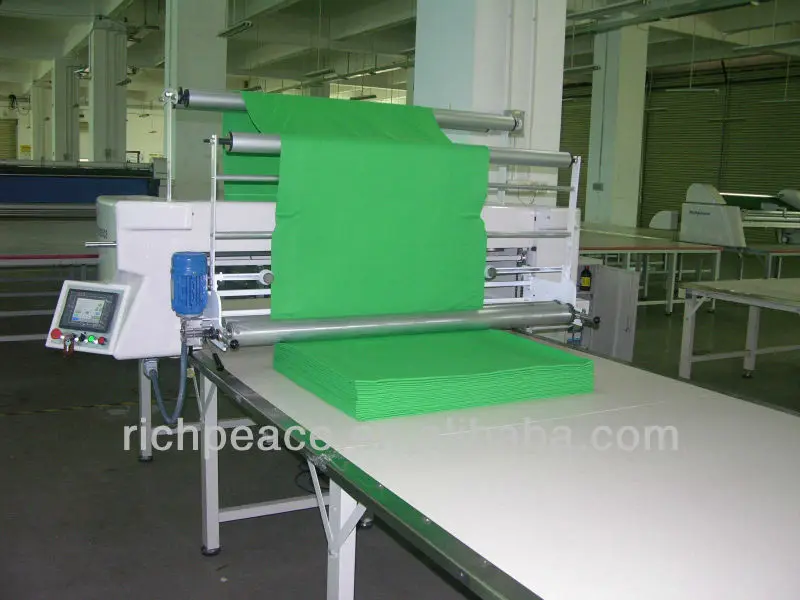

Richpeace Automatic Tubular  Knitting Fabric Cutting Spreader









Mail Features and Function

  • Use Mitsubishi PLC as control system, stable performance and easy maintenance.
  • Touch screen color display with English and Chinese bilingual for easy operation and learning.
  • Spreading programmes control machine to perform efficient and tension free fabric distribution.
  • Any spreading length can be performed
  • Intimate product design for easy operation and maintenance, high cost effectiveness



Technical Characteristics



  • The max spreading weight up to 100KG
  • Adjustable machine speed from 0 to 80mts/min
  • Adjustable edge side alignment by double diffuse reflection sensor
  • Electronic count, insure high precise record
  • Automatic start checks control when machine is switched on
  • Ability to program all steps in a spread according to production needs
  • Program to count spreading time and total spread meters
  • Digital touch screen
  • Fabric automatic cutting system
  • High sensitivity security sensor, emergency stop
  • Spreading height adjustable timely
  • Fabric Auto cutting without tension
  • Automatic stop when fabric is used up
  • Spreading many kind of knitting and woven fabric

 Back Side Of The Machine











Specifications

Model

RPS-1016

PRS-1018

RPS-1022

RPS-1030

Voltage

1P/220V

Power

1.7Kw

2.8Kw

Max. ClothWidth(mm)

1600

1800

2200

3000

Table width(mm)

1900

2100

2500

3300

Machine eight(Kg)

245

265

305

385

Packing Weight(Kg)

445

485

545

735

Max. Cloth Roll Weight

100Kg

Max. Roll Diameter

60cm

Max. Travel Speed

80m/min

Max. Layer Height

                                                       23cm

Dimensions  L*W*H

2800*1000*1000mm

3000*1000*1000mm

3400*1000*1000mm

4200*1000*1000mm

Packing Volume  L*W*H

3100*1400*1200mm

3300*1400*1200mm

3700*1400*1200mm

4500*1400*1200mm
