Industrial Long Arm Single-needle mattress manufacturing Quilting Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
2.5 KW
Dimension(L*W*H):
5360x4915x1800
Weight:
1.9T
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Model Number:
RPQ-ST-3333
Max Sewing Speed:
2500rpm
Max Sewing Thickness:
5cm
Number of Head:
Single Head
Moving Style:
Head Moved
Voltage:
380V/50HZ
Certification:
CE
Head:
1
Speed:
2500rpm
Head type:
rotary up automatically
Computer Control:
Industry standard, 10.4 inches touching screen
Thread Trimming:
yes
Main motor:
Panosonic servo motor 2pc
Needle&Hook Motor:
Panosonic servo motor 2pc
Bridge Moving:
on linear guide rail
Head Moving:
on linear guide rail
Machine Structure:
1:1 design frame is fixed
Warranty:
13months
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
600 Set/Sets per Year
Packaging & Delivery
Packaging Details
Vaccum-packed with aluminum foil in wooden box, group packing vailable for 4sets order or above.
Port
XINGANG, TIANJIN
Lead Time :
25 days

Richpeace Computerized Single Head Quilting Machine(Head Up)

Available For Mattress Making





Product Description

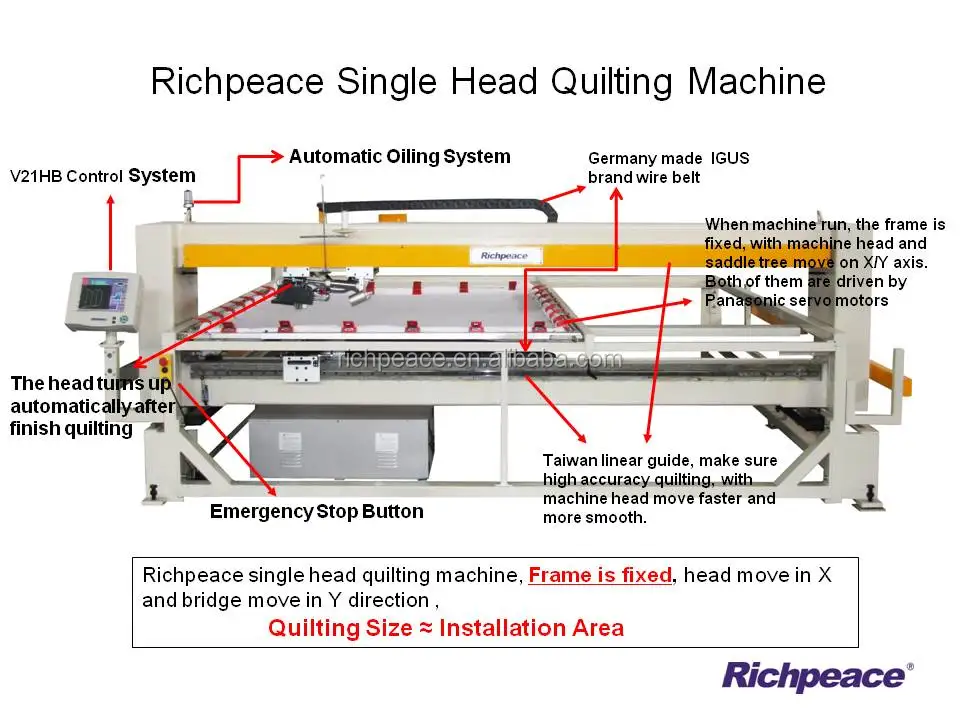

SHOW OF THE STRUCTURE


 MAIN FEATURE & FUNCTION:



  • Real 1:1 design,  Sewing head move in X and Y direction with frame fixed. Mini installation area.
  • The quilting size is almost as same as machine dimension, minimum factory floor area is requested. It is the Richpeace's unique design in industry
  • Maximum quilting size: 3.3 x 3.3 meters, largest working area awailable in all suppliers
  • New 10.4inches Touching screen computer operation panel, saving more space!
  • Highest working speed:  2500rpm.
  • Four panasonic servo motors offer powerful drive and long working time of machine.
  • Taiwan linear guide rails for bridge moving, head moving, and rotary hook case moving;  make the machine move quietly and smoothly, the space between needle and rotary hook is more stable
  • Highest quilting stitch quality, best pattern precision.   Pattern graphics joint with each other with extremely high accuracy.
  • Auto thread-cutting function at jump quilting, save labor and time.
  • The sewing head turns up automatically for easy changing of quilt frame.
  • New LED lighting system energy-saving and trace whole quilting process
  • Automatically stop to front side once thread break, and come back to stop point after re-threading.
  • Infrared facility protect safe operation
  • Japanese Koban Jumbo rotary hook carries more thread, saving time greatly.
  • Wire Belt Chain brand: Igus made in Germany
  • Automatic oiling system
  • Adjustble quilting frame.  2 sets of frames (4pcs total) free of charge
  • Professional industry computer control system, powerful computer function
  • Powerful Quilting punching system to make patterns accurately, offer free of charge



 OPTIONAL PARTS:

Easy frame changer for preparing quilts, and change frames easily



Richpeace Single Head machine working in customer's factory with automatical hanging system:



Qquiltig Mattress





APPLICATION



This machine is widely used for producing all kinds of high class bedding products, such as: bed mat, bed quilts, sleeping bags, mattress cover etc.  it's the most highest quality machine, good for both thin and thick material quilting.



Samples

 SAMPLE & PATTERN:



Good for precision quilting work on leather material:



MATTRESS



QUILT



our customers



Popular Models

Series

RPQ-ST-2526-1-LS50

RPQ-ST-2628-1-LS50

RPQ-ST-2830-1-LS50

RPQ-ST-3232-1-LS50

(mm)Material Size

2750X2850

2900X3100

3100X3300

3500X3550



(mm)Max. Quilting Size

2500x2600

2600X2800

2800X3000

3200X3200



Stitch

Lock Stitch

Lock Stitch

Lock Stitch

Lock Stitch

(mm)Stitch Length

2-6

2-6

2-6

2-6

(g/m2)Max. Quilting Density

2100

2100

2100

2100

(rpm)Max. Speed

3000

3000

3000

3000

Dimension(L*W*H)

4030X4060x1500

4100X4140x1500

4340X4280x1500

4800X4640x1500



Packaging & Shipping





PACKING & SHIPPING

  Vaccum-packed with aluminum foil in wooden box, group packing vailable for 4sets order or above.







  • Installation Services: Installation Services are available. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
  •  Training Services: We can provide the free training to customer not more than 10 days either in our factory or customer’s factory, we offer Customers Training, teaching, how to use the machine most efficiently and safely as well as how to maintain optimal operational productivity. While the accommodations and travelling expenses should be borne by customer .
  •  Warranty Service: 12 months since the date of machine shipped on board, excluding the consumable parts and humanly damaged parts. Broken electrical boards should be returned back to seller.
