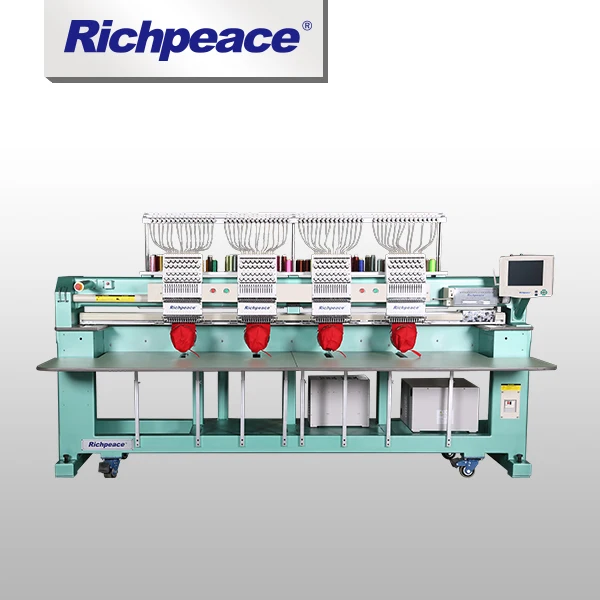

Computerized Multi-head Cap / Tubular Embroidery Machine

FOB Reference Price:Get Latest Price
$15,000.00 - $30,000.00 / Sets | 1 Set/Sets Multi-head Computerized Cap/Tubular Embroidery Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Embroidery Area:
40*45cm/36*45cm/38*38cm/28*28cm/17*7cm
Overall Dimensions:
from 112*120*165cm to 348*141*165cm
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Model Number:
TC Series
Type:
Cap Embroidery Machine
Operation:
Computerized
Head Number:
2/4/6 heads
Needle Number:
9/12
Head Interval:
400mm, 360mm, 380mm, 280mm
Certification:
CE ISO
Input power supply:
single phase 220V/50Hz 3-phase 380V/50Hz
Max.Speed (rpm):
Flat:1000/Cap/Tubular:750
Application:
T-shirt, Sweaters, Tubular working clothes, caps
Power:
0.8~1.6kw
Weight:
320~1500kg
Main Shaft Driving:
Servo motor
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
8 Set/Sets per Week Multi-Head Computerized Cap/Tubular Embroidery Machine
Packaging & Delivery
Packaging Details
vacuum-packed with aluminum foil in wooden case
Port
Xingang, Tianjin
Lead Time :
35 days
Product Description

Main features & Functions

1. Power failure protection function: when unexpected power failure occured, it can search for the suspension point and make a continuous operation.

2. Scale up/down: scale the designs down to 50% or up to 200% in the increments of 1%; rotation is by 1-degree increments.

3. Work process backward/forward is available in units of stitches, color change or designated stitch count.

4. Adjustable presser foot: can be adjusted according to different thickness of the material.

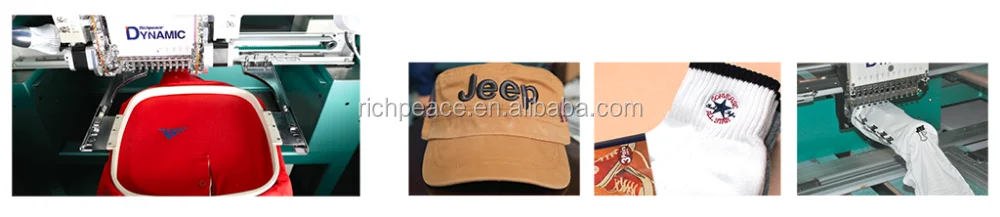

Detailed Images
Model
Embroidery Area
Flat (mm)
Embroidery Area
Tubular (mm)
Embroidery Area
Cap (mm)
Weight (kg)
Power (kw)
Head
Needle
Dimensions
TC902
360X450

280X280

50X300
400

1.0

2
9
1400*1180*780*1650
TC1202
400X450
500
12
1520*1180*780*1650
TC904
360X450

280X280

50X300
700

1.3

4
9
2120*1180*780*1650
TC1204
400X450
900
12
2320*1180*780*1650
TC906

360X450

280X280

50X300

1500

1.6

6
9

3110*1250*780*1650
TC1206
12
