Richpeace Computerized Single Head Quilting Machine for Mattress

FOB Reference Price:Get Latest Price
$15,000.00 - $20,000.00 / Sets | 1 Set/Sets Richpeace Computerized Single Head Quilting Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
4KW
Dimension(L*W*H):
3960*3930*1500mm
Weight:
1450kg
Condition:
New
Place of Origin:
Tianjin, China
Brand Name:
RICHPEACE
Model Number:
RPCQ-ST-1-2526-2-L, S50
Max Sewing Speed:
3000rpm
Max Sewing Thickness:
50mm
Number of Head:
Single Head
Moving Style:
Head Moved
Voltage:
AC380V±10%/50HZ,2.5KVA
Certification:
CE ISO
Product name:
Single Head Computerized Quilting Machine
Material Size (mm):
2750X2850
Max. Quilting Size (mm):
2450X2550
Stitch:
Lock Stitch
Stitch Length:
2-6mm
Max. Quilting Density:
1500g/m*m
Installation Area:
3.8m X 3.9m
Option:
+ easy frame changer
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
8 Set/Sets per Week Richpeace Computerized Single Head Quilting Machine for Mattress
Packaging & Delivery
Packaging Details
vacuum-packed with aluminum foil in wooden case
Port
Xingang, China
Lead Time :
35 days
Product Description

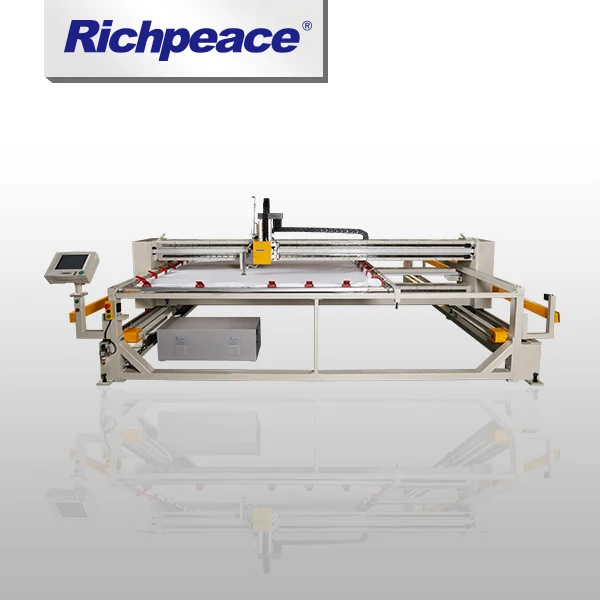

Richpeace Cmputerized Single Head Quilting Machine (Lifting Head)

1) Highest speed up to 3000rpm, normal working speed 2700 rpm.
2) 1:1 fixed quilting frame design, sewing head and machine bridge fully move, saving space.
3) Automatic lifting head, machine will lift head automatically after finishing quilting. It is easy to change new frame.
4) Specially designed sewing head, with individual presser foot driving, suitable for various thickness of quilting materials (Max. thickness: 50mm).
5) Adopt Panasonic full servo system, moving by linear guide rails for precise pattern.
6) Touch screen panel for easy and simple operation.

Detailed Images
Series
RPCQ-ST-2526-2-L, S50
RPCQ-ST-2628-2-L, S50
RPCQ-ST-2830-2-L, S50
RPCQ-ST-3232-2-L, S50
Material Size (mm)
2750*2850
2900*3100
3100*3300
3500*3550
Max. Quilting Area
2450*2550
2600*2800
2800*3000
3200*3250
Stitch
Lock Stitch
Stitch Length
2-6mm
Max.Quilting Density
1500g/㎡
Max. Speed
3000rpm
Dimension
3960*3930*1500
3990*4040*1500
4130*4280*1500
4540*4600*1500
Certifications
Our Company

Richpeace Group,

     founded in Hongkong in 1992, established the first joint venture (SHENZHEN HUAYI) in China mainland in 1993. In 2000, Richpeace invested Beinjing North Phenix (600435) and went public. During more than 2 decades, it has invested and established a dozen of high-tech enterprises, and made outstanding contributions to the textile and garment industries.
     Tianjin Richpeace Computer & Machinery Co., Ltd. was established in 2006, which is the production base and the flagship enterprise of the Group and has three wholly-owned subsidiaries: Shenzhen Richforever CAD/CAM Co., Ltd. (CAD software), Tianjin Yinrare Technology Co., Ltd. (CAM software) and Tianjin Richpeace Trading Co., Ltd. (import and export). The company is located in Tianjin Baodi economic development zone. In 2006, the company put into production, with a total investment of 150 million RMB, covering an area of 75.5 thousand square meters and construction area of 46.9 square meters.
      Tianjin Richpeace Computer & Machinery Co., Ltd. owns such core technologies as software, computer, electrical, mechanical and laser, integrating research and development, production as well as sales. The main products include CAD software series, CAD hardware equipment, CAM equipment, laser equipment, sewing equipment, embroidery equipment, quilting equipment, and computer control, total 8 series of products. "Richpeace" Brand has been registered in more than 100 countries. With over 300 patents and more than 30 software copyrights, Richpeace has passed the ISO9001 quality management system certification, and all products have passed the CE security certification.
