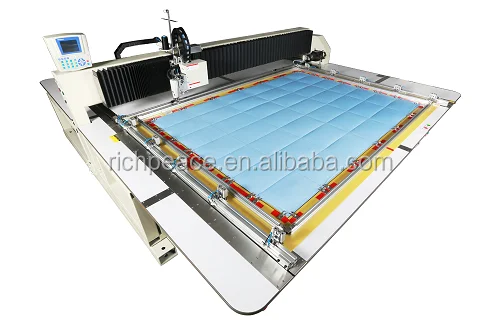

Richpeace Automatic Precision Large size Sewing Machine for Sleeping Bag

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $25,000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Brand Name:
RICHPEACE
Model Number:
RPAS-PQ-1-2200X1600-B-2-LH
Head Number:
1
Stitch Type:
Single needle lock stitch
Working Speed:
2500 stitch/min
Clamp Drive:
Pneumatic Clamping System
Rotary Hook:
Jumbo Size Rotary Hook
Working Area:
2200X1600mm
Application:
Down filled quilt, cotton quilt, silk quilt
Feature:
Down-proof technology
Lifting Sewing Head:
50mm max.
Optional Device:
Automatic Loader
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
8 Set/Sets per Week Automatic Precision Large size Sewing Machine for Sleeping Bag
Packaging & Delivery
Packaging Details
vacuum-packed with alumium foil in wooden case
Port
Xingang, China
Lead Time :
35 days upon receipt of advance payment or original L/C
Product Description

Product Application

Richpeace Automatic Precision Large Size Sewing Machine is suitable for high quality produce requirement in down filled quilt, cotton quilt, silk quilt etc.


Main Features

1) Working speed: 2500rpm.

2) Lifting head suitable for heavy material, sewing thickness: 40-50mm before pressing, 2-3mm after pressing.

3) 3-axis servo + ball screw to ensure large area high speed sewing with high precision effect on joints of corners and sharp point.

4) Ballscrew driving X-axis sewing head and rotary hook, ensure synchronous movement within 0.05mm deviation. Stable sewing with #7 needle, fulfill backward and forward sewing function.

5) Y-axis movement driven by ballscrew to keep high speed and precision working.

6) Richpeace's unique down-proof technology to avoid the down leakage during sewing process.

7) Detachable machine structure, easy for shipping and loading to shop floor.

8) Sewing head can lift up to 50mm.

Certifications
Detailed Images

Machine Parts

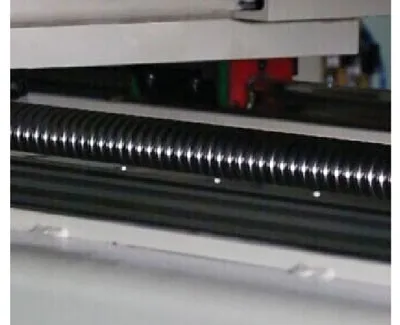

Ballscrew driving X-axis sewing head and rotary hook, ensuring synchronous movement within 0.05mm deviation. Stable sewing with #7 needle, fulfill backward and forward sewing function.

Y -axis movement driven by ballscrew to keep high speed and precision working.

Main Features

For sewing all types of sleeping bag, such as the mummy sleeping bag, the envelop sleeping bag; long length down jacket, winter clothes, moisture-proof pads, ect.

Suitable for high quality produce requirement in down filled quilt, cotton quilt, silk quilt etc.


Support presser foot change according to different needs of sewing material, to reach best sewing quality.


3-side pneumatic press system, make sure uniform presser on template to hold flat material tight from side to side and front to back.


Easily realise special sewing process,

Offer stable sewing stitch quality, reduce failure sewing rate. Machine can be run by workers with simple training.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
The normal package is wooden box with aluminum foil vacuum-packed inside. If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
