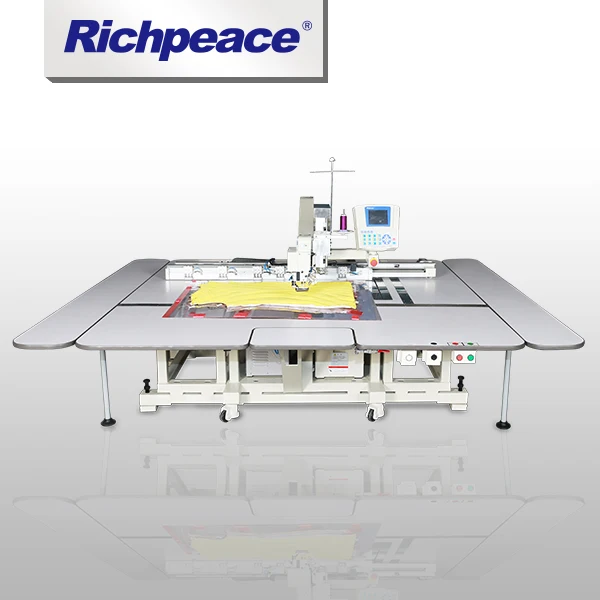

Richpeace Single Head Automatic Sewing Machine for Down Jacket

  • 1 - 4 Sets
    $6,700.00
  • >=5 Sets
    $6,000.00
Model Number:
RPAS-LM-1-1200X800-A-1(2)
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Brand Name:
RICHPEACE
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Head Number:
1
Sewing Area:
1200X800mm
Stitch Type:
Single needle lock stitch
Max. Sewing Speed:
2500 stitch/min
Stitch Length:
0.5~12.7mm
Clamp Drive:
Pneumatic Clamping System
Rotary Hook:
Standard rotary hook, jumbo size rotary hook
Power Supply:
Single phase 220V, Three phase 220V, 380V
Compressor Air:
0.5Mpa, 1.7L/min
Supply Ability
Supply Ability:
8 Set/Sets per Week Richpeace Single Head Automatic Sewing Machine for Jacket
Packaging & Delivery
Packaging Details
vacuum-packed with alumium foil in wooden case, group packing available for 4 sets order or above
Port
Xingang, China
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Product Description

Product Application

Richpeace Single Head Automatic Sewing Machine is widely applied for garment parts (collar, flap, cuff, front fly, zipper etc.), down jacket, winter clothes sewing, cushion cover home textile sewing production.

Model
RPAS-LM-1-900X600-A-I(2)
RPAS-LM-1-1200X800-A-1(2)
Thread Trimmer System
YES
YES
Data Transfer
USB DISK
USB DISK
Rotary Hook
Standard Rotary Hook,
Jumbo Size Rotary Hook,
Tripe Size Rotary Hook
Standard Rotary Hook,
Jumbo Size Rotary Hook,
Tripe Size Rotary Hook

Main Features

1) Working speed: 2500 rpm.

2) For thin/medium material sewing, hook size optional for standard or jumbo.

3) Integrated advantages of mechanical & electrical ensure stable working under high speed.

4) Richpeace unique down-proof technology to avoid down leakage during sewing.

5) Elastic presser foot with lifting function on sewing head .

6) Template positioning detective function, four design patterns circulate function.

7) Barcode identification to change sewing pattern faster.

8) Bobbin thread counter enable to provide bobbin thread capacity alert by bobbin thread consumption or number of sewing pieces made.

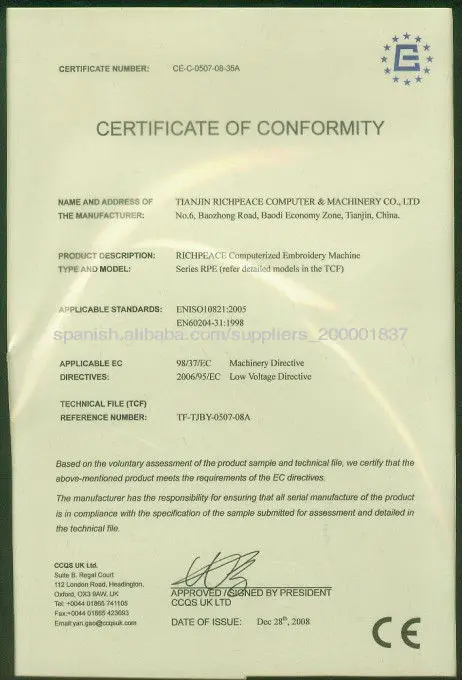

Certifications
Detailed Images

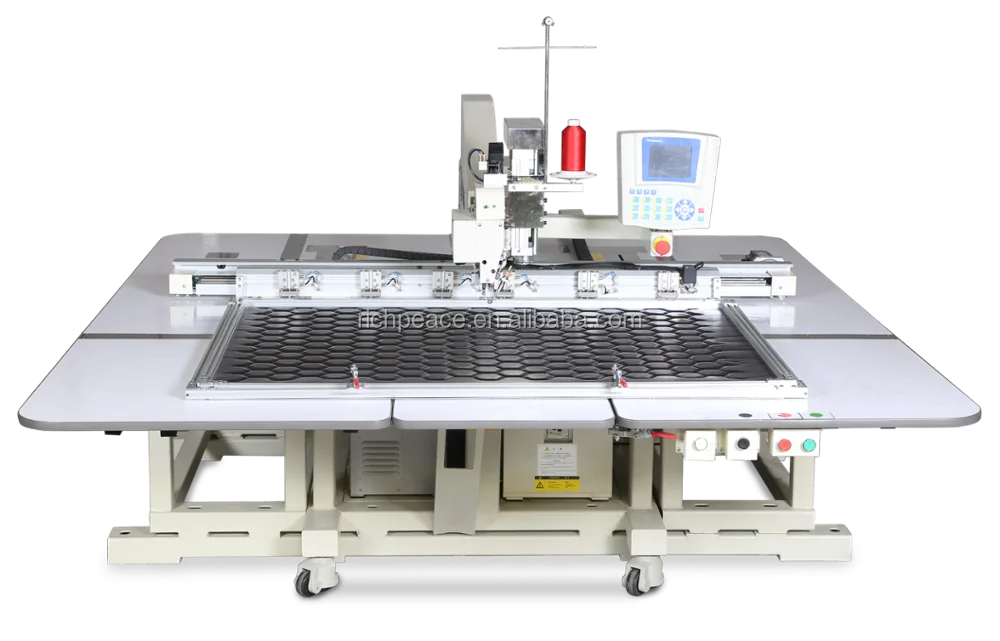

Machine Parts

Open pneumatic clamping system, hold template tight and reliable;

Barcode identification

Main Features

Richpeace unique down-proof technology to avoid down leakage during sewing


No limitation for designing, with Richpeace AutoSew CAD software.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
 2700 (L) * 2370 (W) * 1400 (D)
Weight
550kg



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

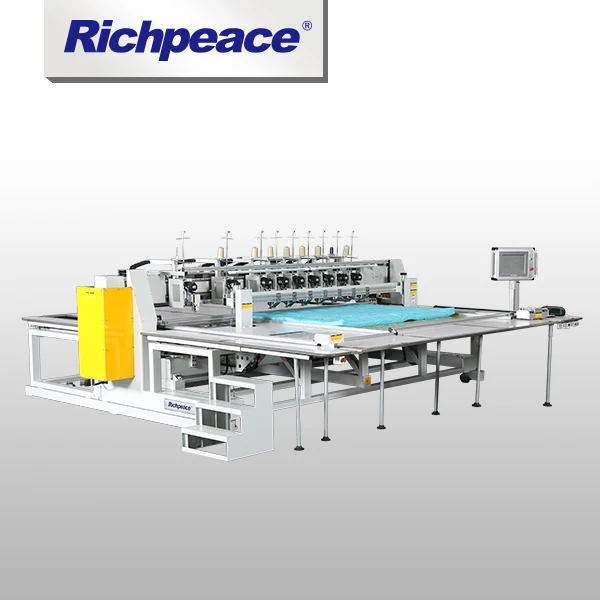

Richpeace Automatic Non-stop Sewing Machine

91.8% Response Rate

Richpeace Multi-head Automatic Tufting (Bar Tacking) Machine

91.8% Response Rate

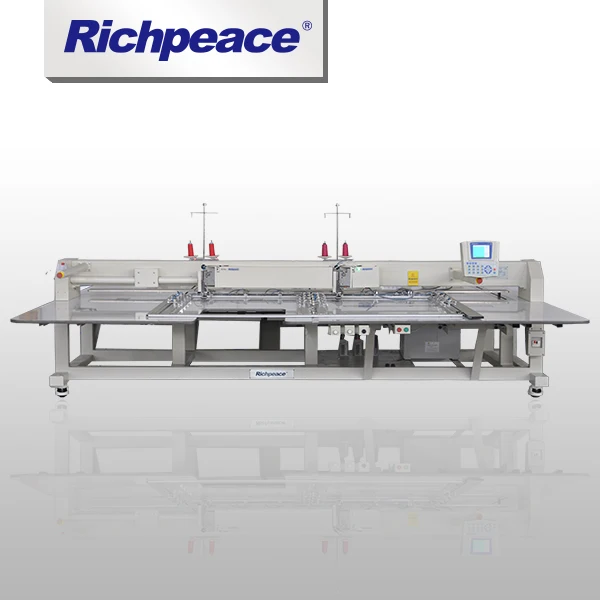

Richpeace Multi-head Automatic Sewing Machine (Heavy Material)

91.8% Response Rate

Our Company

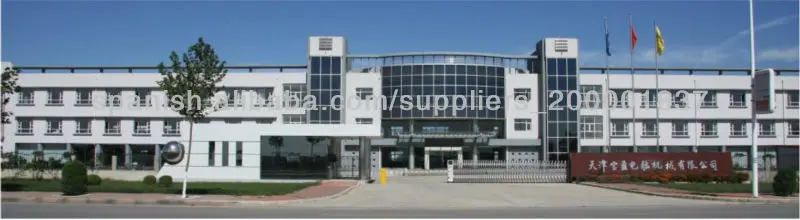

Founded in Hongkong in 1992, Richpeace Group established the frist joint venture (Shenzhen Huayi) in China mainland in 1993. In 2000, Richpeace invested Beijing North Phenix (600435) and went public. During over 2 decades, Richpeace has invested and established a dozen of high-tech enterprises, and made outstanding contributions to the textile and garment industries.

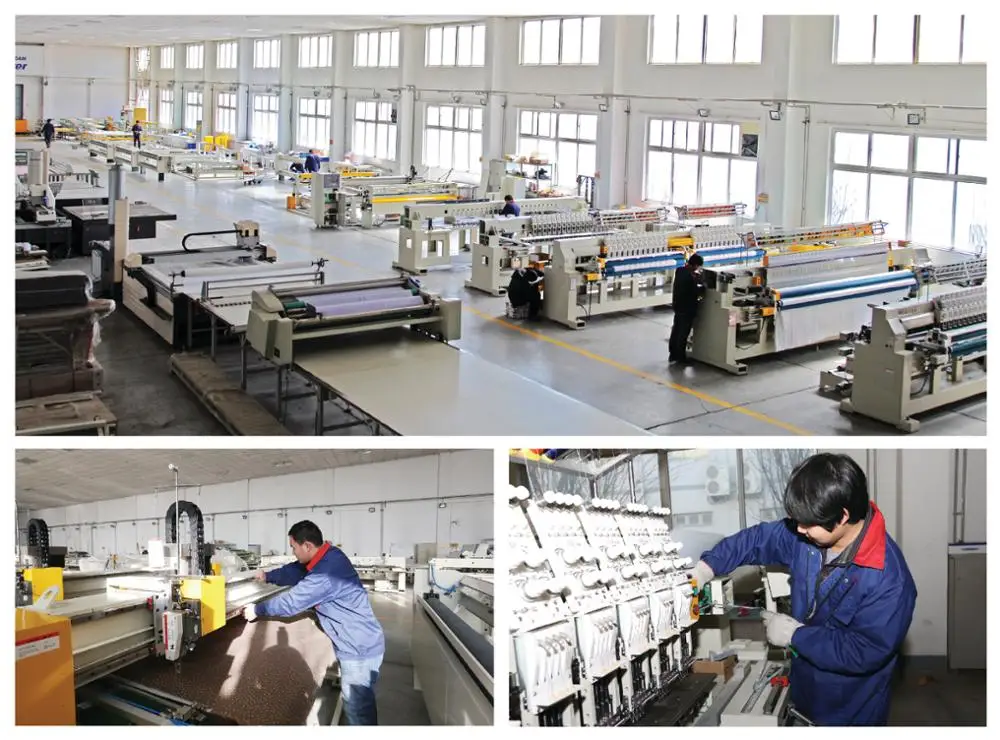

Tianjin Richpeace Computer & Machinery Co., Ltd., located in Tianjin Baodi economic development zone, is the production base and the flagship enterprise of the Group. The company owns such five core technologies as software, computer, electrical, mechanical and laser, integrating research & development, production and sales. The main products include 8 series of CAD software, CAD hardware equipment, CAM equipment, laser equipment, sewing equipment, embroidery equipment, quilting equipment and computer control.
The brand name RICHPEACE is registered in more than 100 countries. We have passed the ISO9001 quality management system certification and all the products have passed the CE security certification, possessing over 300 patents and more than 30 software copyrights.
